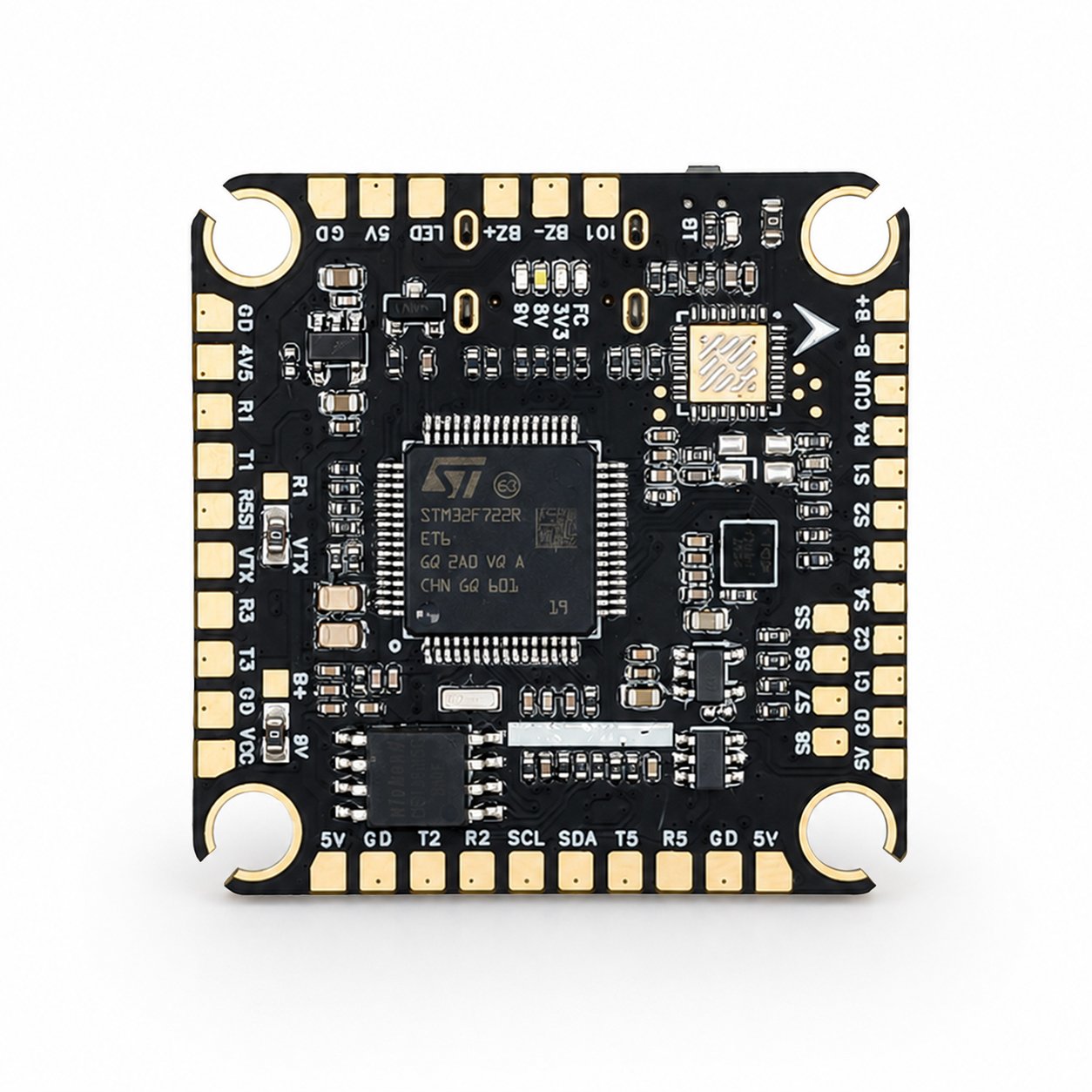

F722 30.5 30.5 Flight Controller
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
12
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
| Specifications | |
| Product NameĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā F722 30.5Ā Ā Ā 30.5 Flight Controller | |
| MCU | STM32F722 |
| Gyroscope | ICM42688P |
| USB Interface | Type-C |
| Barometer | Built-in |
| OSD Chip | AT7456E |
| DJI Air Unit | Direct 6-pin cable connection (if using a DJI remote controller, move the resistor to short R1) |
| Blackbox | Built-in 16 MB |
| Current Sensor Input | Supported |
| BetaFlight Camera Adjustment Pads | Supported |
| Input Voltage | 4S-8S LiPo battery |
| Power Outputs | 5V/2.5A, 9V/3A |
| Motor Outputs | 8 channels |
| General-Purpose UARTs | 5 channels |
| Receiver Protocols | ELRS / CRSF / S.BUS / Futaba / Flysky / TBS Crossfire / DSMX |
| LED Strip | Supported |
| Buzzer Pads | Supported; connect BZ+ and BZ- to a 5V passive buzzer |
| BOOT Button | Supported. Hold the BOOT button while connecting USB or powering on to enter DFU mode for firmware flashing. |
| Firmware Name | F722V2 betaflight_4.5.0 |
| Mounting Pattern | 30.5 x 30.5 mm (4 mm hole diameter) |
| Dimensions | 37 x 37 mm |
| Weight | 9.4 g
|
