Description
| Specification Sheet | |

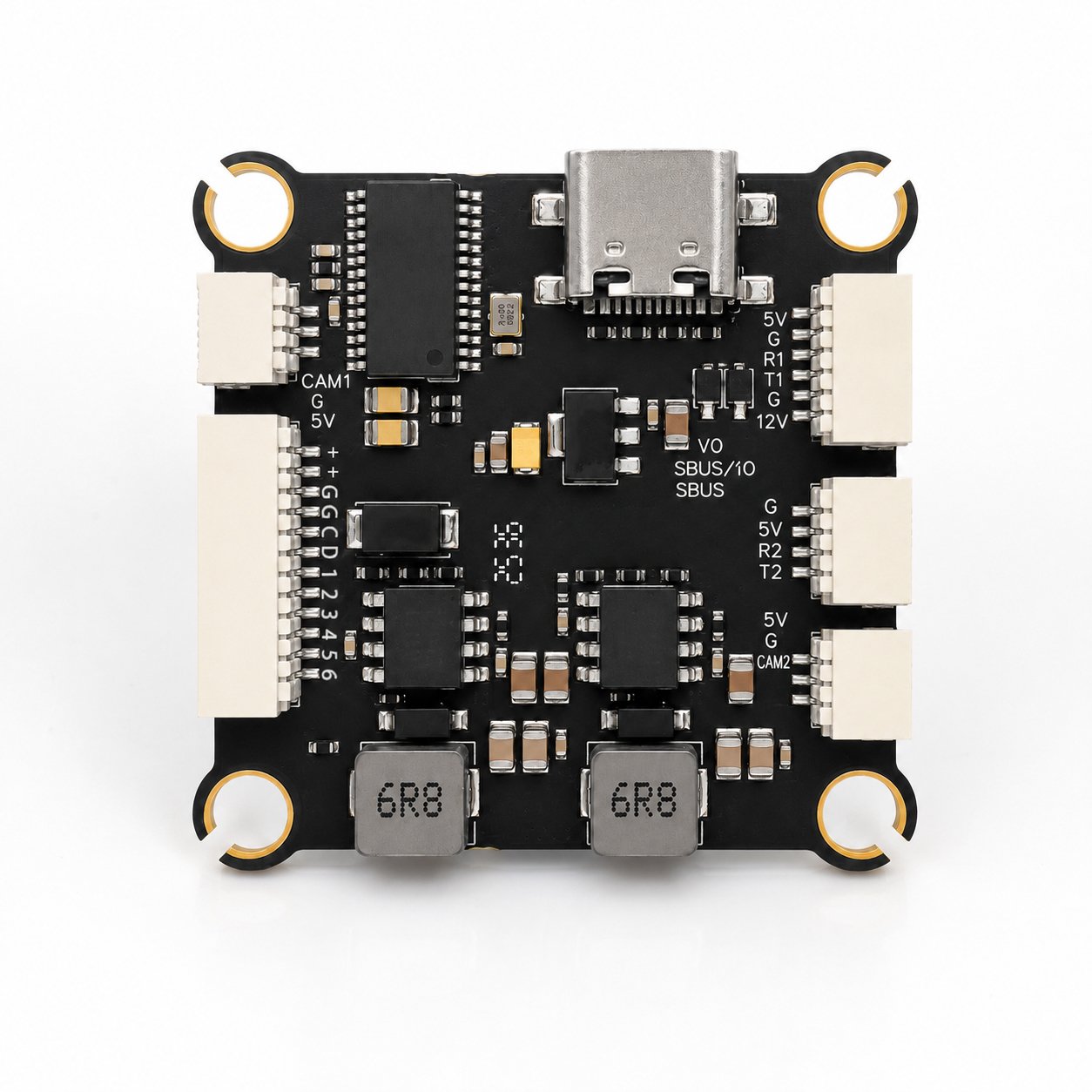

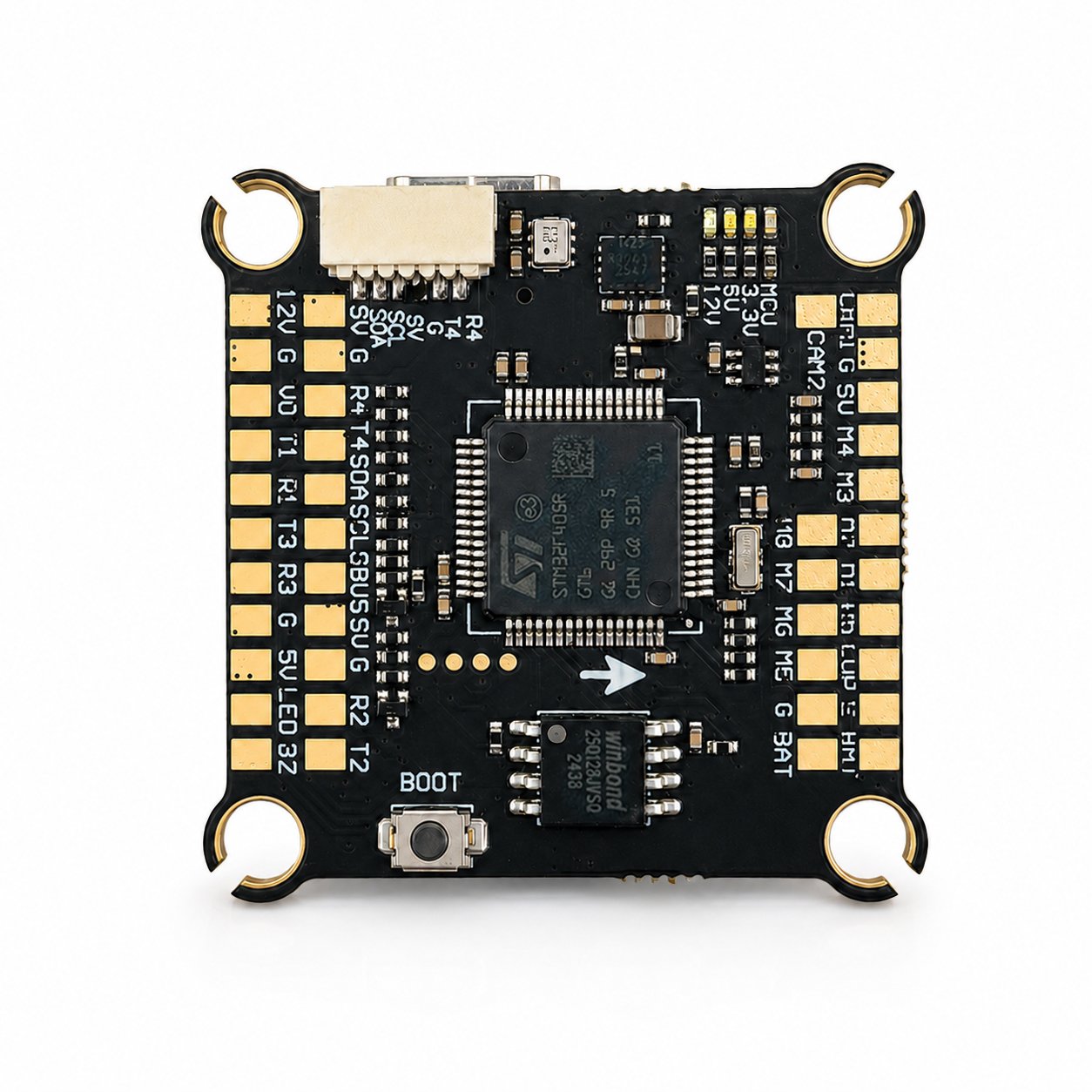

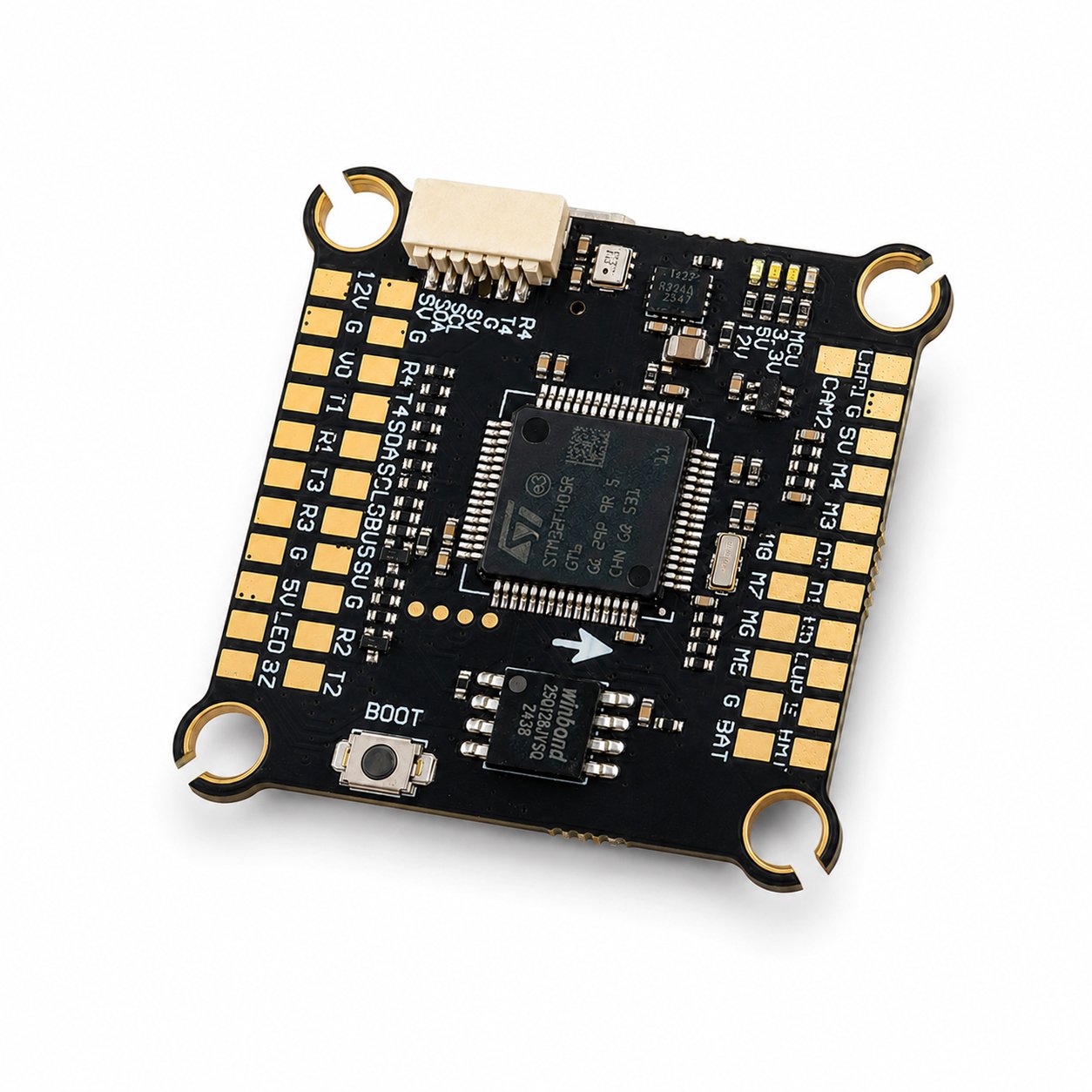

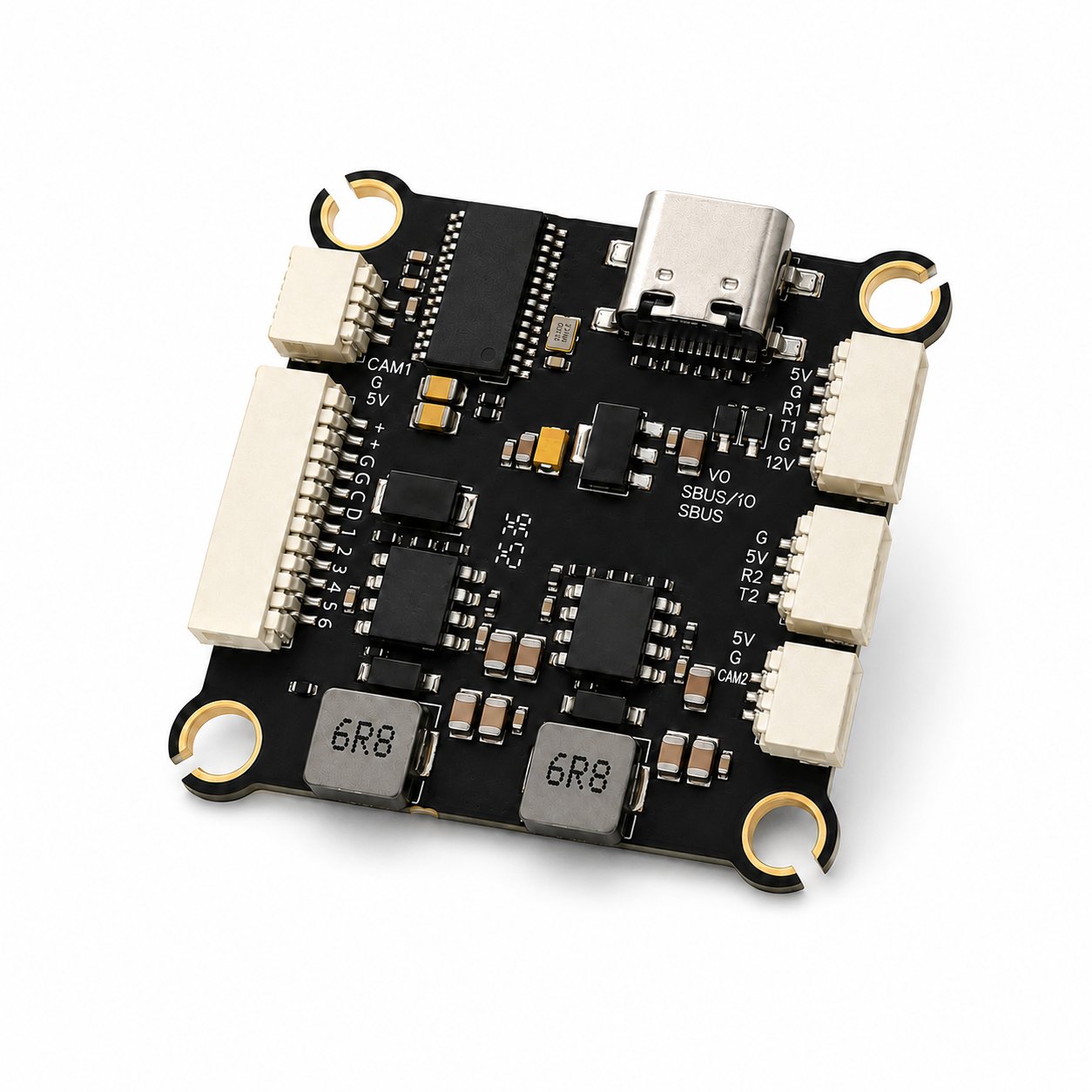

| Product Name | F405 4-8S 30.5 x 30.5 Flight Controller |
| MCU | STM32F405 |
| Gyroscope | ICM42688P |
| USB Connector Type | Type-C |
| Barometer | Built-in |
| OSD Chip | AT7456E |
| DJI Air Unit | Supports soldered wiring or direct connection via a 6-pin cable |
| GPS Connection | Direct connection via a 6-pin cable or soldered wiring |
| Blackbox | Built-in 16 MB |
| Current Sensor Input | Supported |
| Betaflight Camera Control Pads | Supported (direct connection via the 3-pin socket or the front-side solder pads) |
| Input Voltage | 4S-8S lithium battery (via the rear 10-pin connector or the GND and BAT solder pads) |
| 5V BEC Output | Eight 5V outputs (four +5V solder pads and four 5V connector outputs on the PCBA); total current output: 2 A |
| 12V BEC Output | Two 12V outputs (one +12V solder pad and one connector containing a +12V output); total current output: 2 A |
| ESC Signals | Front-side M1-M4 and M5-M8 (supports 4-8 motors/axes) |
| UART Ports | 4 UART ports |
| Traditional Betaflight LED Pads | Supported: 5V, GND, and LED pads on the PCBA surface |
| Buzzer Pads | Supported: connect a 5V passive buzzer to 5V and BZ |
| BOOT Button | Supported. Hold the BOOT button while connecting USB or powering on to enter DFU mode for firmware flashing. |
| SmartPort | Supported; the TX pin of any UART port can be used |
| Firmware Target Name | SPEDIXF405 |
| Mounting Pattern | 30.5 x 30.5 mm (4 mm hole diameter) |
| Dimensions | 36 x 36 mm |
| Weight | 7 g |
| Product Name | 60A 4-in-1 ESC |
| Firmware | D_X_30_REV16_7 |
| Wireless Configuration | Not supported; all parameters can be configured in Betaflight via a data cable |
| Continuous Current | 60 A x 4 |
| Maximum Current | 70 A (5 seconds) |
| TVS Protection Diode | YES |
| External Capacitor | 1000 uF high-frequency, low-ESR capacitor |
| ESC/Motor Protocol | DSHOT300/600 |
| Input Voltage | 3S-6S lithium-ion battery |
| Output Voltage | VBAT |
| Current Sensor | Supported |
| Mounting Hole | M4 |
| Mounting Pattern | 30.5 x 30.5 mm (4 mm hole diameter) |
| Dimensions | 42 x 41 mm |
| Weight | 11.5 g |
